Description
Overview
The Datalogic Gryphon I GBT4400 2D Barcode Reader is a premium wireless scanning solution designed to deliver fast, accurate, and versatile data capture in demanding environments. Powered by Bluetooth wireless technology, it provides mobility with a range of up to 30 meters (98 ft), making it an ideal choice for retail stores, healthcare facilities, manufacturing units, logistics centers, and government environments.
With its advanced 2D area imager, the GBT4400 supports omni-directional scanning of 1D, 2D, Postal, Stacked, and GS1 DataBar barcodes, ensuring compatibility with modern tracking and identification systems. The device features motion-tolerance optics at 60 frames per second, enabling seamless scanning of moving items, which enhances user efficiency and reduces scanning errors.

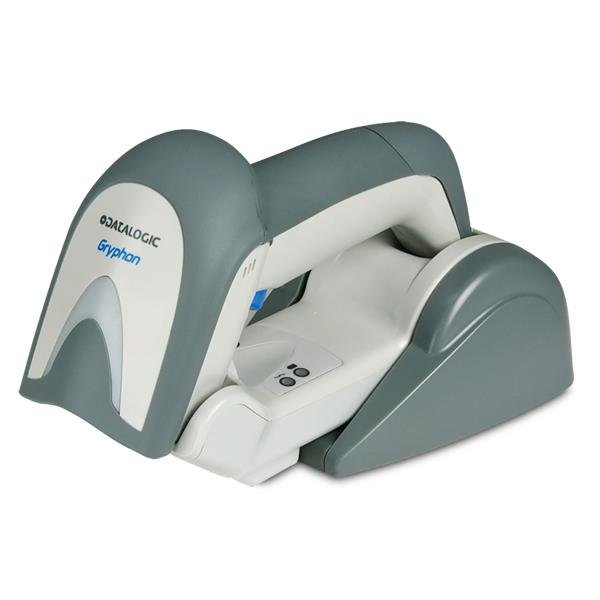

The scanner includes Datalogic’s patented Green Spot technology, offering visual good-read confirmation, along with a highly visible 4-dot aimer for precise targeting. Designed with flexibility in mind, it supports multiple interface options and includes a two-position cradle that allows users to scan even while charging.
Built to withstand rigorous daily use, the GBT4400 offers 1.8 m (5.9 ft) drop resistance and features a long-lasting, user-replaceable Li-ion battery capable of delivering up to 50,000 scans per charge. With Batch Mode, it can store more than 1200 barcodes, making it suitable for environments where wireless connectivity is inconsistent.
Overall, the GBT4400 delivers a powerful combination of speed, accuracy, durability, and mobility — making it one of the most reliable 2D wireless barcode readers for modern businesses.
🟦 General
| Category | Details |
|---|---|
| Brand | Datalogic |
| Series | Gryphon GBT4400 |
| Part Number | GBT4400-WH |
| Form Factor | Handheld |
| Connectivity | Cordless |
| Scan Engine | 2D Area Imager |
🟦 Connectivity
| Feature | Details |
|---|---|
| Included Cables | Scanner Only – No Cable |
| Interfaces Supported | Multi-Interface (RS-232 / USB / Keyboard Wedge / Wand / IBM 46XX) |
| Cordless Type | Bluetooth Wireless Technology |
🟦 Scan Performance
| Feature | Details |
|---|---|
| Light Source | 650 nm Visible LED |
| Resolution (High Density) | – 1D Linear: 0.077 mm / 3 mils – Data Matrix: 0.127 mm / 5 mils – PDF417: 0.102 mm / 4 mils |
| Resolution (Standard Range) | – 1D Linear: 0.102 mm / 4 mils – Data Matrix: 0.178 mm / 7 mils – PDF417: 0.127 mm / 5 mils |
| Pitch Angle | ±40° |
| Roll Angle | 360° |
| Yaw Angle | ±40° |
| Print Contrast Ratio | Minimum 25% |
| Motion Tolerance | 60 frames per second |
| Reading Mode | Omnidirectional |
| Image Capture | Yes |
| Drop Resistance | 1.8 m / 5.9 ft |
🟦 Electrical
| Feature | Details |
|---|---|
| Battery Type | Lithium-Ion, 2100 mAh |
| Charge Time | 4 hours @ 12 VDC |
| Reads per Charge | Up to 50,000 scans |
| Input Voltage | 4.5 – 14.0 VDC |
| Power Consumption | Charging: < 8 W Operating: < 2.5 W @ 5 VDC Standby: < 2.5 mA @ 5 VDC |
🟦 Mechanical
| Feature | Details |
|---|---|
| Color | White |
| Dimensions | 7.25″ × 3.90″ × 2.20″ |
| Weight | 0.54 lb |
| Ruggedness | General Purpose |
🟦 Key Features
-
Bluetooth Wireless Technology with up to 30 m / 98 ft range
-
Omnidirectional reading for faster scanning
-
60 fps motion tolerance for moving items
-
Supports 1D, 2D, Postal & GS1 DataBar codes
-
Green Spot feedback for good-read confirmation
-
4-dot aimer for precise barcode targeting
-
Multi-interface communication
-
Scan-While-Charging two-position cradle
-
Batch Mode stores 1200+ barcodes
-
User-replaceable Li-ion battery
-
Drop resistance: 1.8 m (5.9 ft)
-
USB Certified Kits available
-
EASEOFCARE service plans available
Application
🏥 Healthcare
Used for patient identification, medication tracking, wristband scanning, specimen tracking, and healthcare asset management.
🏬 Retail
Ideal for POS billing, inventory checks, barcode-based offers, shelf management, and customer loyalty programs.
🚚 Logistics & Warehousing
Used for parcel tracking, inbound/outbound scans, warehouse inventory, and asset tracking.
🏗 Manufacturing
Helps with component tracking, assembly line scanning, production verification, and part labeling.
🏛 Government & Public Sector
Used for ID verification, document tracking, postal services, and controlled access systems.
✈ Travel & Leisure
Supports ticket validation, boarding pass scanning, event entry authentication, and membership card scanning.
📦 Special Materials
Suited for unique barcode formats, specialized tracking labels, and high-density barcodes on small components.
