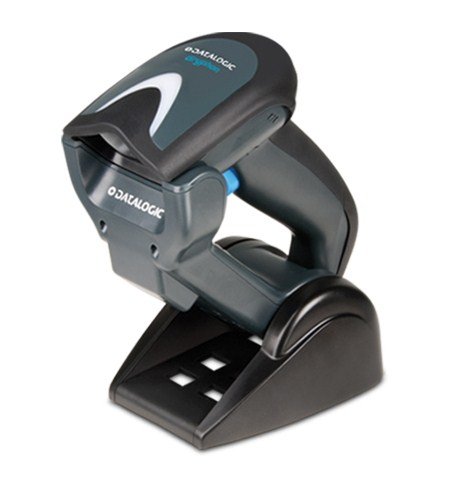

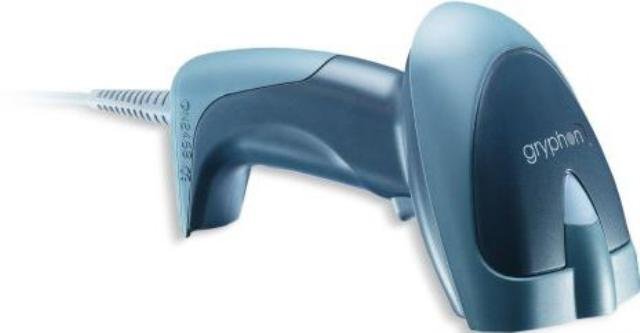

Datalogic Gryphon D4130 Barcode Scanner

Description

Overview

The Datalogic Gryphon D4130 Barcode Scanner is a high-performance linear imager designed for superior reading performance, durability, and versatility across various industries. Ideal for applications ranging from retail and healthcare to logistics, manufacturing, and government sectors, this scanner delivers fast, reliable barcode capture from near contact up to 1.0 m (3.9 ft). Its wide 42° scan angle and advanced decoding capabilities ensure accurate reading of even hard-to-read, poor, or damaged codes, while the patented Datalogic ‘Green Spot’ provides instant good-read feedback, even in dimly lit or noisy environments. Ergonomically designed for comfort during prolonged use, the Gryphon D4130 supports multiple interface options including USB, RS-232, Keyboard Wedge, and Wand Emulation, making it compatible with a wide range of POS systems and devices. Lightweight, robust, and featuring a disinfectant-ready enclosure, this scanner is perfect for retail stores, pharmacies, hospitals, warehouses, and manufacturing plants. As authorized sellers and distributors, we provide genuine Datalogic Gryphon D4130 scanners with full support, ensuring reliable supply and service for your business needs.

Specification

Decoding Capability

• 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

• Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional

Electrical

• Operating Current: 245 mA @ 5 VDC

• Standby/Idle Current: 120 mA @ 5 VDC

• Input Voltage: 4.75 – 5.25 VDC

Environmental

• Ambient Light: 0 – 100,000 lux

• Drop Resistance: 1.5 m / 5 ft onto concrete

• ESD Protection: 16 kV

• Humidity: 0 – 90% non-condensing

• Sealing: IP52

• Operating Temperature: 0 – 55 °C / 32 – 131 °F

• Storage/Transport Temperature: -20 – 70 °C / -4 – 158 °F

Interfaces

• RS-232 / USB / Keyboard Wedge / Wand Multi-Interface

Physical Characteristics

• Colors: Light Green / Light Grey (Rubber / Plastic)

• Dimensions: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in

• Enclosure: Disinfectant-Ready with SANITIZED™ Anti-Microbial Additives

• Weight: 169 g / 6.0 oz

Reading Performance

• Imager Sensor: CCD Solid-State

• Light Source: Dual LED Array 630 – 670 nm

• Print Contrast Minimum: 15%

• Read Rate: Up to 325 reads/sec

• Reading Angle: Pitch 65°, Roll 35°, Skew 65°

• Indicators: Beeper (adjustable), Datalogic Green Spot, Good Read LED

• Resolution: 0.076 mm / 3 mils

Reading Ranges – Typical Depth of Field

• 5 mils: 6 – 18 cm / 2.3 – 7 in

• 7.5 mils: 3.5 – 30 cm / 1.4 – 11.7 in

• 10 mils: 2 – 45 cm / 0.8 – 17.7 in

• 13 mils: 3 – 60 cm / 1.2 – 23.4 in

• 20 mils: 3 – 80 cm / 1.2 – 31.2 in

Safety & Regulatory

• Complies with required safety and regulatory approvals

• Environmental Compliance: China RoHS, EU RoHS

• LED Classification: IEC 60825-1 Class 1

Applications

• Healthcare: Can be used in hospitals, pharmacies, and clinics for accurate scanning of patient wristbands, medications, and inventory.

• Retail: Ideal for retail stores for fast and reliable point-of-sale scanning of products and loyalty cards.

• Logistics: Mostly used in logistics and warehousing for asset management, package tracking, and inventory control.

• Manufacturing: Supports production lines for part tracking, labeling, and quality control.

• Government: Suitable for various government sectors, including document management and asset tracking.

• Travel & Leisure: Useful in airports, hotels, and entertainment venues for ticketing, access control, and membership management.

• Special Materials: Efficient for scanning special barcodes in sectors handling unique or high-value materials.
