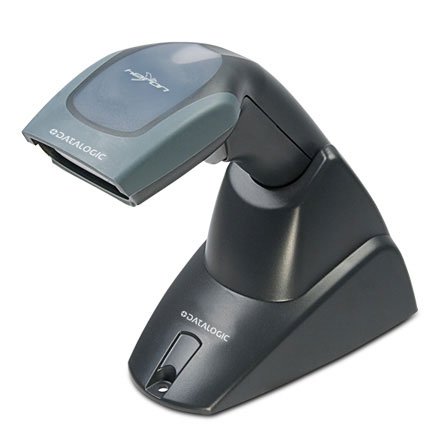

Datalogic Heron D130 Scanner

The Datalogic Heron D130 is an entry-level 1D barcode scanner designed for fast, accurate, and reliable performance across retail, office, POS, and healthcare environments. Operating at instinctive scanning distances from near contact up to 20 cm (8 inches), its compact, lightweight, and ergonomic design ensures operator comfort during long daily use. The Heron D130 functions as both a handheld and presentation-style reader, with an auto-sensing stand that seamlessly switches between handheld and hands-free scanning modes.

Supporting a wide range of 1D codes, including stacked GS1 DataBar™ linear codes, the scanner features Datalogic Green Spot technology for instant read confirmation. Equipped with a CCD imager, Red LED illumination, a read rate of 256 scans/sec, and a maximum resolution of 0.100 mm (4 mils), it delivers reliable performance even under challenging conditions. Built for durability, it offers IP30 sealing, 16 kV ESD protection, and can withstand drops from 1.8 meters (5.9 ft). Multiple interface options include RS-232, USB, Keyboard Wedge, and Wand, with optional EAS-compatible models for Nedap and Checkpoint® systems.

The Heron D130 is ideal for healthcare, retail, logistics, manufacturing, government, travel, and special materials, supporting inventory management, asset tracking, document processing, and ticketing. As authorized importers, distributors, and sellers, we provide genuine Datalogic Heron D130 scanners with warranty support and bulk availability to meet all your scanning needs.

Contact Us:
📞 8800839490
✉️ gm@indianbarcode.com

Category:

Description

Overview

The Datalogic Heron D130 is an entry-level barcode reader packed with features to enhance user experience. Designed for instinctive reading distance applications (near contact up to 20 cm / 8 in), it is ideal for retail point-of-sale (POS) and office environments, delivering high performance in a compact, innovative design.

The Heron D130 is versatile, functioning as both a handheld and presentation-style scanner. Each unit comes with an auto-sensing stand: when removed from the stand, the reader automatically switches to handheld mode; when placed back in the stand, it beeps and switches to Stand Mode for hands-free scanning, making it intuitive and efficient for operators.

Developed specifically for POS applications, the Heron series offers multiple interface options:

  • D130 Multi-Interface: RS-232, USB, Keyboard Wedge, and Wand Emulation for broad connectivity.

  • D110 Model: Compatible with IBM cash registers and POS terminals.

  • D150 EAS Model: Integrated EAS antenna and specialized cables compatible with Nedap and Checkpoint® EAS systems, allowing seamless EAS tag deactivation and barcode reading in one motion.

Key Features of the Heron D130:

  • Supports handheld and hands-free operation

  • High first-pass read accuracy for efficient scanning

  • Complete data formatting and editing capabilities

  • Datalogic Green Spot technology for visual confirmation of successful scans

  • Compatible with GS1 DataBar™ linear codes

  • EAS compatible models for Nedap and Checkpoint systems

As a trusted seller and distributor of Datalogic products, we provide genuine Heron D130 scanners with reliable supply, warranty support, and expert guidance for businesses of all sizes. With its ergonomic design, versatile scanning modes, and reliable performance, the Datalogic Heron D130 is a cost-effective and user-friendly solution for multiple applications.

Specification

Decoding Capability

  • 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

  • Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional

Electrical

  • Operating Current: 155 mA @ 5 VDC

  • Standby/Idle Current: < 2.5 mA @ 5 VDC

  • Input Voltage: 5 VDC ±5%

Environmental

  • Ambient Light: 0 – 100,000 lux

  • Drop Resistance: Withstands repeated drops from 1.8 m / 5.9 ft onto concrete

  • ESD Protection (Air Discharge): 16 kV

  • Humidity (Non-Condensing): 90%

  • Particulate and Water Sealing: IP30

  • Operating Temperature: 0 to 55°C / 32 to 131°F

  • Storage/Transport Temperature: -20 to 70°C / -4 to 158°F

Interfaces

  • D130: Keyboard Wedge, RS-232, USB, Wand

  • D110 / D150: RS-232 / IBM 46XX

  • Optional EAS: D150 – Checkpoint Systems

Physical Characteristics

  • Color: Dark Grey

  • Dimensions: 15.2 × 15.3 × 6.8 cm / 6.0 × 6.0 × 2.7 in

  • Weight: 160 g / 5.6 oz

Reading Performance

  • Imager Sensor: CCD Solid-state, 2048 pixels

  • Light Source: Red LED, 640 nm

  • Print Contrast Ratio (Minimum): 15%

  • Read Rate (Maximum): 256 reads/sec

  • Reading Angle: Pitch 75°, Roll (Tilt) 30°, Skew (Yaw) 70°

  • Reading Indicators: Beeper, Datalogic Green Spot, Good Read LED

  • Maximum Resolution: 0.100 mm / 4 mils

Reading Ranges (Depth of Field)

  • 5 mils: 3.0–11.0 cm / 1.2–4.3 in

  • 7.5 mils: 1.0–14.0 cm / 0.4–5.5 in

  • 10 mils: 0.5–18.0 cm / 0.2–7.0 in

  • 13 mils: 1.0–22.5 cm / 0.4–8.8 in

  • 20 mils: 1.0–27.0 cm / 0.4–10.5 in

Safety & Regulatory

  • Agency Approvals: Meets required safety and regulatory standards

  • Environmental Compliance: China RoHS, EU RoHS

  • LED Classification: IEC 60825 Class 1 LED

Utilities

  • Datalogic Aladdin™: Free configuration software

  • OPOS / JavaPOS: Utilities available for download at no charge

Applications

  • Healthcare: Used in hospitals and clinics for patient ID, lab samples, and medical record tracking.

  • Retail: Ideal for point-of-sale scanning, inventory management, and product tracking in stores.

  • Logistics: Widely used for asset management, shipment tracking, and warehouse operations.

  • Manufacturing: Helps in production line scanning, parts tracking, and quality control.

  • Government: Utilized in various government sectors for document, asset, and record management.

  • Travel & Leisure: Useful for ticket scanning, access control, and travel documentation.

  • Special Materials: Scanning and tracking of special labels, items, or regulated materials.
