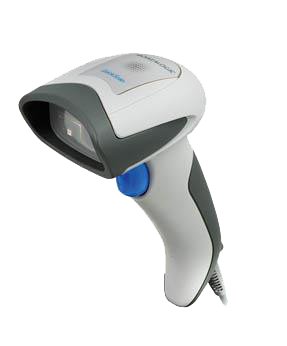

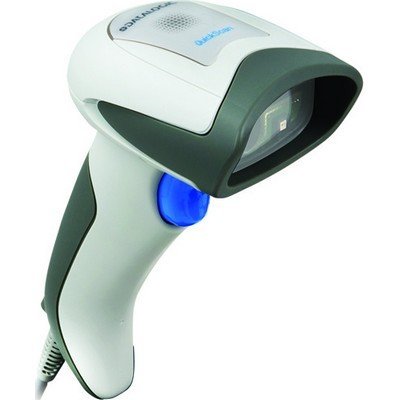

Datalogic QD2400 2D Scanner

Description

Overview

The Datalogic QuickScan QD2400 2D Scanner is a versatile corded 2D area imager designed to meet the growing demand for 2D barcode scanning across retail and POS environments. With its omnidirectional reading performance, it can quickly and reliably read both traditional linear barcodes and complex 2D codes, including those displayed on mobile phone screens or loyalty cards. The scanner features a compact, balanced, and lightweight design that maintains Datalogic’s signature durability while ensuring operator comfort during long scanning sessions. Its innovative illumination and aiming system uses soft dark-red light with two blue LED triangles to precisely target the barcode, reducing visual stress and eye fatigue for operators while maintaining high productivity. The QD2400 combines elegant design, robust construction, and imaging technology to deliver performance that matches or exceeds laser scanners, offering a lower total cost of ownership and long-term reliability for retailers and businesses looking for an efficient and affordable 2D barcode scanning solution.

Specification

Decoding Capability

• 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

• 2D Codes: Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code, China Han Xin Code

• Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)

• Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites

Electrical

• Operating Current: 140 mA @ 5 VDC

• Standby/Idle Current: 50 mA @ 5 VDC

• Input Voltage: 4.5 – 14 VDC ±10%

Environmental

• Ambient Light: Up to 86,000 lux

• Drop Resistance: 1.5 m / 5.0 ft onto concrete

• ESD Protection: 16 kV

• Humidity: 0 – 95% non-condensing

• Sealing: IP42

• Operating Temperature: 0 – 50°C / 32 – 122°F

• Storage/Transport Temperature: -40 – 70°C / -40 – 158°F

Interfaces

• Keyboard Wedge, OEM (IBM), USB, RS-232

Physical Characteristics

• Colors: Black, White

• Dimensions: 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in

• Weight: 145 g / 5.11 oz

Reading Performance

• Imager Sensor: Wide VGA 752 x 480 pixels

• Light Source: Red LED 610–650 nm; aiming with 2 Blue LEDs

• Motion Tolerance: 25 IPS

• Print Contrast Ratio (Min): 25%

• Reading Angle: Pitch ±65°, Roll ±360°, Skew ±60°

• Reading Indicators: Beeper (adjustable), Datalogic Green Spot, Good Read LED

• Resolution (Max): 0.102 mm / 4 mils (Linear Codes)

Typical Depth of Field

• Code 39 (5 mils): 0.5 – 15.0 cm / 0.2 – 5.9 in

• EAN/UPCA (13 mils): 0.5 – 35.0 cm / 0.2 – 13.8 in

• PDF417 (6.6 mils): 1.0 – 13.0 cm / 0.4 – 5.1 in

• Data Matrix (10 mils): 1.0 – 13.0 cm / 0.4 – 5.1 in

Safety & Regulatory

• Meets all necessary safety and regulatory approvals

• Environmental Compliance: China RoHS, EU RoHS

Utilities

• Datalogic Aladdin™ configuration software

• OPOS / JavaPOS Utilities

• Remote Host Download for reduced service costs

Applications

The Datalogic QD2400 2D Scanner is a versatile scanning solution suitable for a wide range of industries and applications. In healthcare, it can be used for patient identification, medication tracking, and inventory management. In retail, the QD2400 streamlines POS operations, loyalty card scanning, and product tracking. Within logistics and warehousing, it is ideal for asset management, shipment tracking, and inventory control. The scanner also supports manufacturing environments, enabling efficient part tracking and quality control processes. Various government sectors benefit from the QD2400 for document verification, access control, and administrative operations. It is also suitable for travel and leisure applications, such as ticket scanning and check-in processes. Additionally, the scanner can handle special materials or coded labels in industries that require precise data capture. Its ergonomic design, omnidirectional reading performance, and Datalogic Green Spot technology ensure fast, accurate, and reliable scanning in all these sectors.
