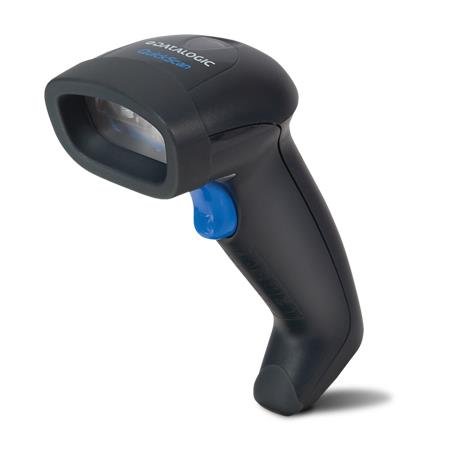

Datalogic Quick Scan QD2100 Imager
Datalogic Quick Scan QD2100 Imager - Image 2
Datalogic Quick Scan QD2100 Imager - Image 3

Datalogic Quick Scan QD2100 Imager

The Datalogic QuickScan QD2100 Imager is an entry-level linear imaging scanner designed for versatile applications in retail, healthcare, logistics, manufacturing, government, and office environments. As part of Datalogic’s value line, it delivers fast, accurate, and reliable barcode scanning at an affordable price, making it ideal for businesses requiring a compact yet high-performance scanning solution.

Lightweight and ergonomic, the QD2100 ensures comfortable use during daily operations. It supports a wide range of 1D barcodes and GS1 DataBar™ linear codes and features Datalogic’s patented Green Spot technology for immediate visual feedback on successful scans. In Stand Mode, the Green Spot remains on, guiding users to position the code correctly for quick and intuitive scanning.

Durable and cost-efficient, the QD2100 comes with a user-replaceable scan window, allowing easy replacement if the window becomes scratched or damaged, reducing downtime and maintenance costs. The scanner is IP42 rated for dust and water resistance and can withstand repeated drops from 1.5 meters, ensuring reliable performance in high-traffic environments.

With multi-interface options including RS232, USB, IBM 46XX, Keyboard Wedge, and Wand interfaces, the QD2100 integrates easily with existing POS systems and software platforms. It operates effectively under varied ambient lighting conditions and supports a wide depth of field, providing consistent and accurate scanning for different barcode sizes and surfaces.

Compact, robust, and efficient, the Datalogic QuickScan QD2100 Imager is an ideal solution for organizations seeking a cost-effective, user-friendly, and reliable barcode scanner to streamline operations, improve accuracy, and increase productivity across multiple industries.

Category:

Description

Overview

The Datalogic QuickScan QD2100 is an entry-level, high-performance linear imaging scanner designed for retail, office, courier, and postal service applications. As part of Datalogic ADC’s value line of general-purpose handheld data collection products, it offers fast and accurate barcode reading at an affordable price.

Compact and lightweight, the QD2100 features an ergonomic design for comfortable daily use and excels at reading hard-to-read barcodes. It supports a wide range of symbologies, including standard 1D codes and GS1 DataBar™ linear codes. The scanner incorporates Datalogic’s patented Green Spot technology, which provides immediate visual feedback on successful reads, and in Stand Mode, it guides users to position the code for quick and intuitive scanning.

Designed for durability, the QD2100 includes a user-replaceable scan window, reducing total cost of ownership by allowing easy replacement without sending the scanner away for repairs. It also offers multi-interface support and optional remote host download features to streamline operations and maintenance.

Specification

Decoding Capability:

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

  • Postal Codes: China Post

  • Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional

Electrical:

  • Operating Current: 340 mA @ 5 VDC

  • Standby Current: 190 mA @ 5 VDC

  • Input Voltage: QD2110: 4–14 VDC | QD2130: 5 VDC ±10%

Environmental:

  • Ambient Light: Up to 100,000 Lux

  • Drop Resistance: 1.5 m / 4.9 ft onto concrete

  • ESD Protection: 20 kV Air Discharge

  • Humidity: 5–95% non-condensing

  • Sealing: IP42

  • Operating Temperature: 0–50°C | Storage: -40–70°C

Interfaces:

  • QD2100: RS232 / IBM 46XX / USB Multi-Interface

  • QD2130: RS232 / USB / Keyboard Wedge / Wand Multi-Interface

Physical Characteristics:

  • Colors: Black, White

  • Dimensions: 17.0 × 7.1 × 6.6 cm

  • Weight: 121.9 g

  • Light Source: Red LED 610–650 nm

  • Print Contrast Ratio: Minimum 15%

  • Maximum Read Rate: 270 reads/sec

  • Reading Angles: Pitch ±65°, Roll ±45°, Skew ±65°

  • Maximum Resolution: 0.102 mm / 4 mils

Reading Range (Typical Depth of Field):

  • 4 mils: 2.0–11.0 cm

  • 5 mils: 1.5–15.0 cm

  • 7.5 mils: 0.8–25.0 cm

  • 10 mils: 0.8–38.0 cm

  • 13 mils: 1.9–45.0 cm

  • 20 mils: 2.5–65.0 cm

Safety & Compliance:

  • IEC 60825-1 Class 1 LED

  • China RoHS & EU RoHS compliant

Utilities & Accessories:

  • Datalogic Aladdin configuration software

  • Replacement Windows (5-pack)

  • Gooseneck Stands (Black & White)

Applications

  • Healthcare: Ideal for patient ID, lab sample tracking, and medication management.

  • Retail: Efficient for point-of-sale scanning, inventory management, and product tracking.

  • Logistics: Used for asset management, package tracking, and warehouse operations.

  • Manufacturing: Supports production line scanning, inventory control, and quality management.

  • Government: Suitable for document management, asset tracking, and public service operations.

  • Travel & Leisure: Helps with ticketing, boarding, and visitor management.

  • Special Materials: Effective for scanning specialized barcodes in materials handling and research applications.
