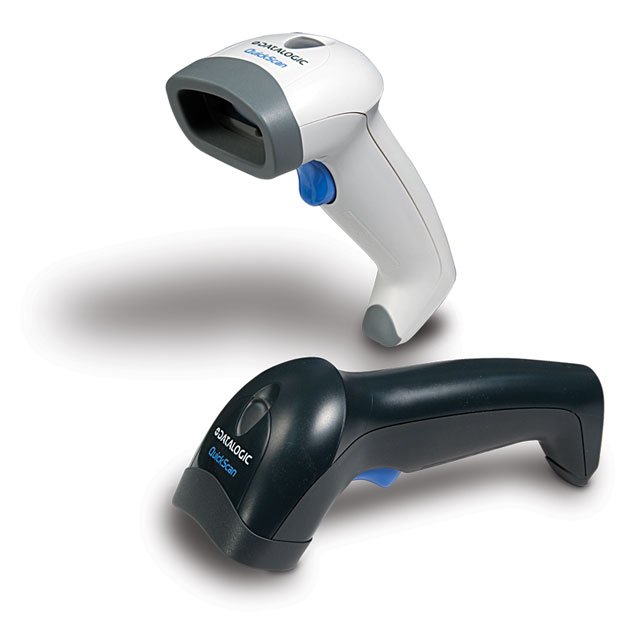

Datalogic Quick Scan QD2300

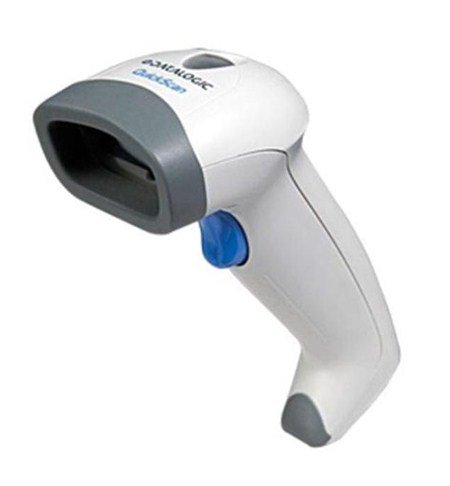

Datalogic Quick Scan QD2300 - Image 2

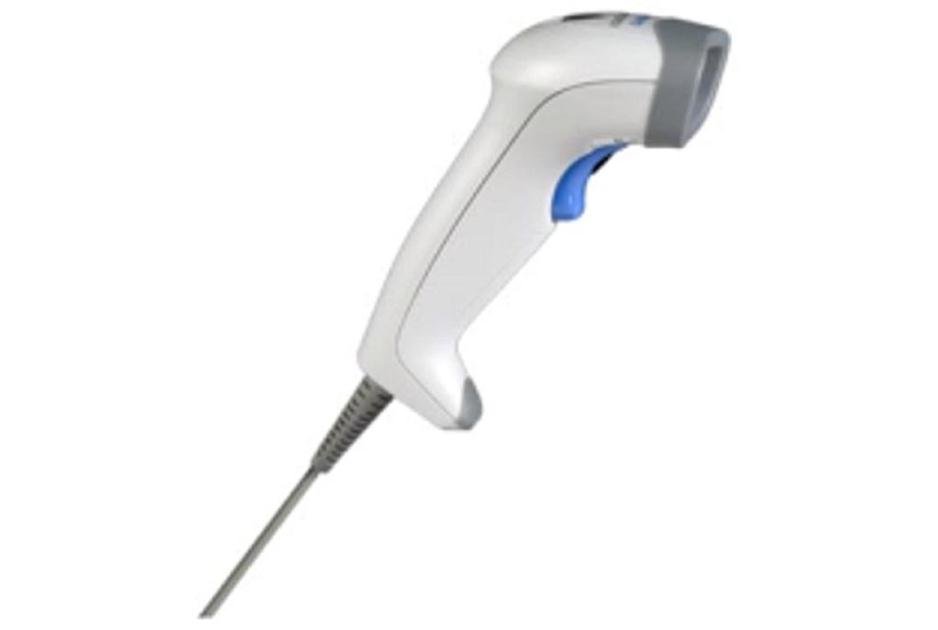

Datalogic Quick Scan QD2300 - Image 3

Datalogic Quick Scan QD2300

The Datalogic QuickScan L QD2300 is a compact, corded laser barcode scanner designed for users who prefer traditional laser scanning technology and need reliable performance at nominal distances. Ideal for retail, logistics, manufacturing, healthcare, office, and government applications, the QD2300 delivers fast and accurate barcode reading for a wide range of 1D codes, including GS1 DataBar™ codes.

Lightweight and ergonomically designed, the QD2300 weighs only 128 g (4.5 oz without cable) and fits comfortably in the hand, making it suitable for extended daily use. Its wider-than-usual scan angle allows users to read longer barcodes from shorter distances, improving efficiency at checkout counters, production lines, or document processing stations.

Durability is a key feature of the QD2300. It meets the IP42 sealing rating for water and dust resistance, can withstand drops from 1.5 meters (5 ft), and supports over 1 million duty cycle triggers. Additionally, it can sustain 20 kV of Electrostatic Discharge (ESD), ensuring long-lasting performance in busy environments.

The QD2300 also incorporates Datalogic’s patented Green Spot technology, providing visual feedback directly on the barcode for successful reads, reducing errors and increasing productivity. Its user-replaceable scanner window allows end users to maintain the device without sending it in for service, lowering downtime and maintenance costs.

With support for RS-232, Keyboard Wedge, and USB interfaces, and compatibility with Datalogic’s configuration software, the QuickScan QD2300 offers a reliable, ergonomic, and cost-effective scanning solution for businesses across multiple industries.

Category:

Description

Overview

The Datalogic QuickScan L QD2300 is a corded laser barcode scanner that delivers reliable and accurate scanning at an affordable price. Designed for general-purpose users who prefer laser scanning technology, it is ideal for reading barcodes at nominal distances in retail, office, and light industrial environments.

Compact and lightweight, the QD2300 features an ergonomic, gun-shaped design that fits comfortably in the hand and minimizes fatigue during extended scanning sessions. Weighing only 128 g / 4.5 oz (without cable), it ensures ease of use for daily operations.

The scanner supports a wide range of 1D barcodes and GS1 DataBar™ codes (previously known as RSS) and delivers snappy scanning performance. Its wider-than-usual scan angle allows users to read longer barcodes from shorter distances, improving efficiency at checkout counters or workstations.

Durability is a key strength of the QD2300. It meets the IP42 sealing rating for dust and liquid resistance and can withstand drops up to 1.5 m / 5 ft. It also boasts a greater than 1 million duty cycle trigger specification and can sustain 20 kV of Electrostatic Discharge (ESD), making it one of the most robust scanners in its class.

A common vulnerability in scanners is damage to the scan window. The QD2300 has been designed with a user-replaceable window pack, allowing end users to replace damaged windows without sending the scanner in for service, reducing downtime and maintenance costs.

The Datalogic QuickScan QD2300 combines ergonomics, durability, and precise laser scanning, providing a reliable and cost-effective solution for businesses needing a high-performance scanner for everyday operations.

Specifications

Mechanical

  • Dimensions: 6.7 × 2.8 × 2.6 in / 170 × 71 × 67 mm

  • Weight (without cable): 4.5 oz / 128 g

  • Color: Black or White

Decoding Capability

  • Interleaved 2/5

  • Code 39 (including full ASCII, TriOptic)

  • Discrete 2/5

  • UPC/EAN (with supplementals)

  • UCC/EAN128

  • Code 128 / Code 128 full ASCII

  • Code 93

  • Codabar

  • Code MSI

  • Code 11

  • IATA

  • GS1 DataBar™ (RSS)

  • Chinese 2 of 5

Optical

  • Minimum Resolution: 5 mils

  • Maximum Resolution: 5 mils / 0.10 mm

  • Scan Angle: 47°

  • Skew (Yaw): 60°

  • Pitch: 65°

  • Tilt: 30°

  • Light Source: 650 nm Laser Diode

  • Scan Rate: 100 scans/sec

  • Print Contrast Minimum: 30%

  • Depth of Field (Typical Reading Range):

    • 5 mils: 5.5 in / 13.9 cm

    • 7.5 mils: 7.8 in / 19.8 cm

    • 10 mils: 8.6 in / 21.8 cm

    • 13 mils: 9.1 in / 23.1 cm

    • 20 mils: 10.6 in / 26.9 cm

Environmental

  • Operating Temperature: 32–122°F / 0–50°C

  • Storage Temperature: -40–158°F / -40–70°C

  • Humidity: 5–95% non-condensing

  • Drop Resistance: Withstands 5 ft / 1.5 m drops onto concrete

  • ESD Protection: 20 kV

  • Water & Dust Resistance: IP42

  • Indicators: LED and programmable beeper

Electrical

  • Base Input Voltage (POT): 5 VDC ±10%

  • Current Consumption: Operating: 100 mA @ 5 VDC; Standby: <35 mA

Communications

  • Stand Mode: Yes

  • Interfaces Supported: RS-232, Keyboard Wedge, USB (Keyboard & HID)

Safety & Regulatory

  • Electrical: UL60950 (USA), CAN/CSA-22.2 No 60950 (Canada), EN60950 (TUV Europe)

  • Emissions: FCC part 15 Class B (USA), EN 55022-B (Europe), AS/NZS CISPR 22-B, VCCI-B (Japan), CNS 13438-B (Taiwan), ICES-003 B (Canada)

  • Laser Safety: Class 2 Laser Product; complies with 21 CFR 1040.10/1040.11 and IEC/EN60825-1:2007

  • Environmental Compliance: Complies with EU RoHS and China RoHS

Applications

  • Healthcare: Used in hospitals and clinics for patient ID, lab samples, and medical records tracking.

  • Retail: Ideal for point-of-sale scanning, inventory management, and product tracking in stores.

  • Logistics: Widely used for asset management, shipment tracking, and warehouse operations.

  • Manufacturing: Helps in production line scanning, parts tracking, and quality control.

  • Government: Utilized in various government sectors for document and asset management.

  • Travel & Leisure: Useful for ticket scanning, access control, and travel documentation.

  • Special Materials: Scanning and tracking of special labels, items, or regulated materials.
