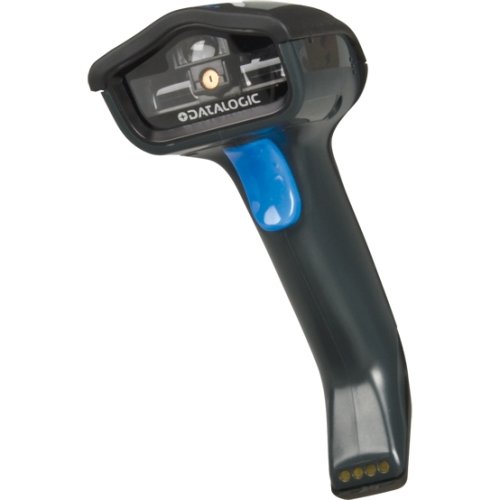

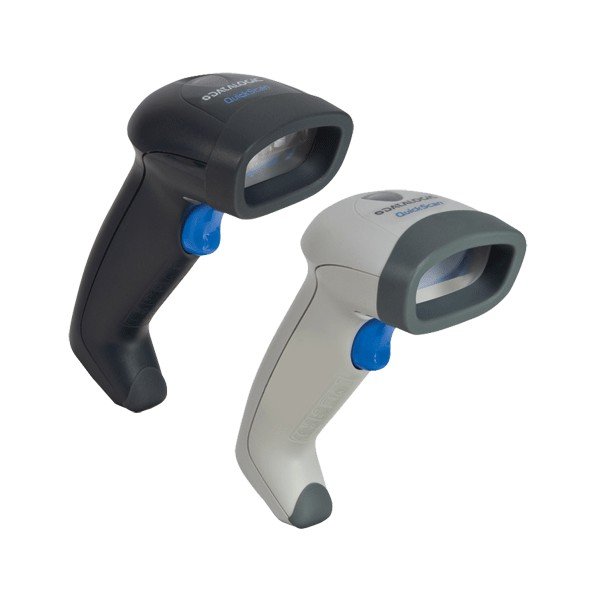

Datalogic Quick Scan QW2100 Scanner

Description

Overview

The Datalogic QuickScan Lite QW2100 linear imager is an entry-level, high-performance barcode scanner designed for retail, light manufacturing, document/bill processing, and banking/finance environments. Specifically engineered to read truncated or long barcodes, which are common in certain regions, it provides reliable and efficient data capture for a variety of applications.

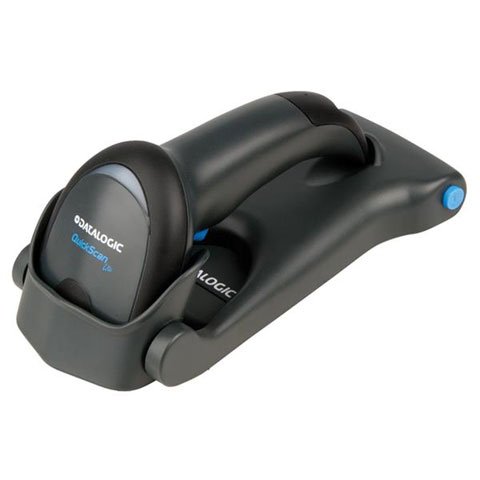

Lightweight and ergonomic, the QW2100 is comfortable for long daily operations. Its fast scanning performance supports most 1D barcodes, including longer and wider codes typically found on utility bills and electronic components. The laser-like thinner and brighter scan line allows scanning at wide angles without increasing the scanning distance. The scanner is also compatible with a collapsible stand, which can function as a holder and features a tiltable head for multiple angle settings.

The QW2100 is available with USB or Keyboard Wedge/RS-232 interfaces and can be packaged as a scanner-only unit or a kit with cable and stand for hands-free operations. It comes with Datalogic Aladdin configuration software, offering a user-friendly quick start procedure suitable for inexperienced users.

---

Features

• Wide scan angle for versatile barcode reading

• Laser-like thinner and extended scan line

• Datalogic’s patented Green Spot technology for good-read feedback

• IP42 rating for water and particulate resistance

• Drop resistance up to 1.5 m / 5 ft

• Uses the same cables and power supplies as current QuickScan products

• Bulk packaging available (10 scanners per box)

• USB certified kits available

• Compatible with a versatile, collapsible stand with tiltable head

---

Industry Applications

• Retail: Point-of-sale scanning, inventory management, product tracking

• Light Manufacturing: Production line scanning, parts tracking

• Document/Bill Processing: Utility bills, invoices, and other documents

• Banking/Finance: Check scanning, document management, and transaction processing

Specifications

Decoding Capability

• 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

• Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)

• Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional

Electrical

• Operating Current: 340 mA @ 5 VDC

• Standby/Idle Current: 190 mA @ 5 VDC

• Input Voltage: 5 VDC ± 0.5 V

Environmental

• Ambient Light: Up to 100,000 lux

• Drop Resistance: Withstands repeated drops from 1.5 m / 5.0 ft onto concrete

• ESD Protection (Air Discharge): 16 kV

• Humidity (Non-Condensing): 5–95%

• Particulate & Water Sealing: IP42

• Temperature: Operating: 0 to 50°C / 32 to 122°F; Storage/Transport: -40 to 70°C / -40 to 158°F

Interfaces

• QW2170-BK: RS-232 / Keyboard Wedge

• QW2120-BK: USB

Physical Characteristics

• Color Available: Black

• Dimensions: 17.0 × 6.5 × 7.0 cm / 6.7 × 2.5 × 2.7 in

• Weight: 119.0 g / 4.2 oz

Reading Performance

• Light Source: Red LED 610–650 nm

• Print Contrast Ratio (Minimum): 25%

• Maximum Read Rate: 400 reads/sec

• Reading Angles: Pitch ±65°, Roll (Tilt) ±45°

• Reading Indicators: Adjustable beeper, Datalogic Green Spot

• Resolution (Maximum): 0.102 mm / 4 mils (1D Codes)

• Field of View: 56° ± 2°

Reading Ranges – Typical Depth of Field

• 5 mils: 2.5–15.0 cm / 1.0–6.0 in

• 7.5 mils: 0–24.0 cm / 0–9.4 in

• 10 mils: 0–35.0 cm / 0–13.8 in

• 13 mils: 0–40.0 cm / 0–15.7 in

• 20 mils: 0–60.0 cm / 0–23.6 in

Safety & Regulatory

• Meets necessary safety and regulatory approvals

• Environmental Compliance: China RoHS, EU RoHS

Utilities

• Datalogic Aladdin: Free configuration software download

• OPOS / JavaPOS: Free utility software download
